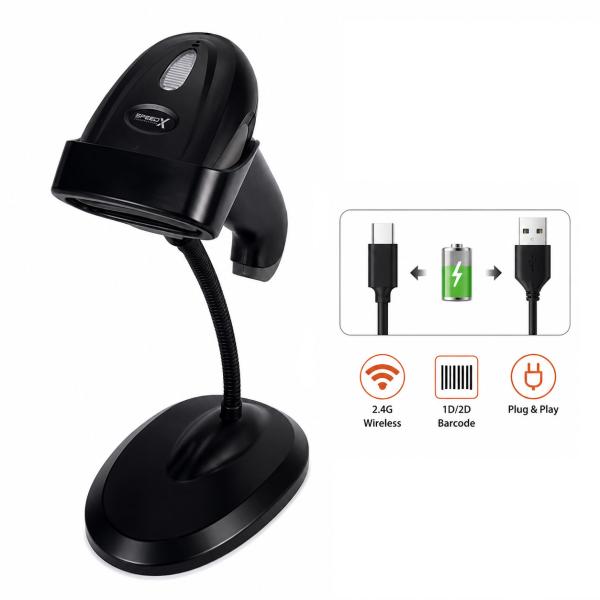

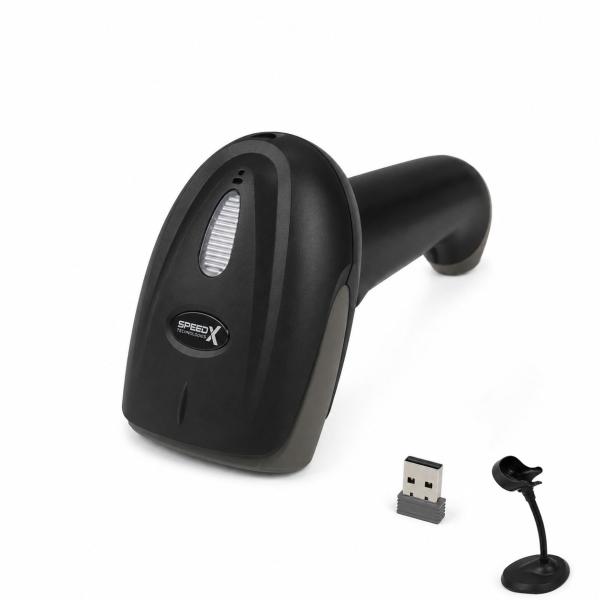

Speed-x 60d 2d Wirless 2.4ghz Barcode Scanner With Stand

(2D CMOS Wireless 2.4G Handheld Barcode Scanner)

Technical Parameters

Wireless specifications

Communications 2.4GHz

Communication frequency 2.402 to 2.480GHz

Transmission range ?30M?In empty area 30M ?

Data rate 1Mbps

Memory 100000@13Byte barcode

Battery capacity 1500mAh (Lithium battery)

Charging time 4.5H

The life time of the full charge 4h?continuous reading situation?

9.5h?Manual reading situation?

More than 15 days ?Stand-by time)

Communication mode Read-time mode/Inventory mode

Electrical Characteristics

Interface USB HID KEYBOARD?Wireless receiver?

Voltage requirement Max:120mA

Min?50mA

Optical Characteristics

Photo sensor CMOS array sensor

SENSOR RESOLUTION 648 X 488 Pixels

Light source White LED

Aim light source Red Bar LED

Performance Characteristics

Decode angle Pitch angle:±60°;Skew angle:±60°;Tilt angle:±180°

Min resolution 1D?4mil

2D?10mil

Min.PCS value ?15% UPC/EAN 13?13mil?

Field of View 46°(H),35°(V)

Identification 1D? Codabar?Code128?Code11?Code32?Code39?Code93?Composite?EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded?GS1 DataBar Limited?GS1 DataBar Omnidirectional?Hong Kong 2 of 5?China Post??Interleaved 2 of 5?Matrix 2 of 5 Pharmacode. RSS-14,RSS-LIMITED, RSS-EXPANDED, Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E

2D?Aztec Code?Codablock F?DOT_CODE, HANXIN, Maxicode?MicroPDF417?Micro QR Code?MSI?PDF417,QR Code, DataMatrix

Physical Characteristics

Dimensions Scanner?95mm×70mm×168mm?L x W x H?

Receiver?83mm*18mm*13mm(L*W*H)

Weight Scanner?186g

Receiver?16g

Environmental Characteristics

Temp 0°?50°C / 32°?122°F(operation) /-10°?60°C /14°?140°F(storage)

Humidity 20 – 85% (operation) ) 20 – 95% (storage)

Shock drop test 1.5m drop onto concrete surface

Ambient Light: fluorescent light 4000 lx max ,

direct sun light 80,000 lx max ,white light 4000 lx max

Decoding Depth of Field

Symbology Resolution Nearest Farthest

Code 39 20mil 5.5cm 35cm

Code 128 15mil 6cm 31cm

EAN-13 13.34mi 6cm 25cm

QR code 20mil 4cm 21cm

PDF417 13.34mil 3cm 29cm
